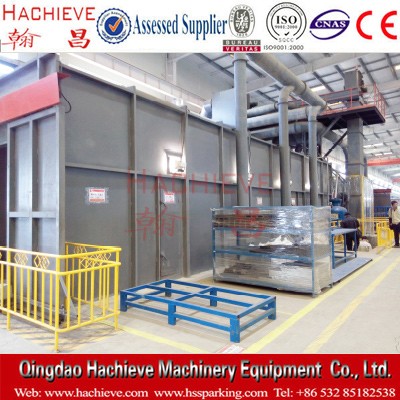

trolley type shot blasting machine
Usage Introduction
trolley type shot blasting machineis a special equipment designed to meet the specific process requirements of users. It is suitable for surface cleaning and strengthening of steel structures and castings, and is more suitable for surface rust removal and surface oxide cleaning of thick billets. It is widely used in casting, forging, machinery and steel industries.
The company's production of trolley-type shot blasting machine stereotypes products are:
Q36 series trolley type shot blasting machine
Q76 series rotary table throwing (spray) pill cleaning room (load 50T)
Q77 series trolley type throwing (spraying) pill cleaning room (load 100T)
Q76 series shot blasting trolley type cleaning machine
technical parameters
Q36 series trolley type shot blasting machine
Q76 series trolley type shot blasting machine
|
No |
Item |
unit |
Q365C |
Q3610 |
Q3620 |
|
1 |
the cleaning workpiece size |
mm |
2500*1300 |
2500*1500*280 |
4000*3000*700 |
|
2 |
carrying capacity of the trolley |
kg |
5000 |
10000 |
20000 |
|
3 |
blasting quantity |
kg/min |
260*2 |
250*4 |
250*5 |
|
4 |
elevating capacity of the elevator |
t/h |
40 |
60 |
75 |
|
5 |
separating capacity |
t/h |
40 |
60 |
75 |
|
6 |
dedusting volume |
m3/h |
13200 |
24000 |
21000 |
|
7 |
total power |
kw |
39.2 |
188.45 |
185.25 |
|
NO |
Item |
unit |
Q765C |
Q7610 |
Q7620 |
Q7630 |
Q7640 |
Q7650 |
Q7610 |
|
1 |
cleaning workpiece size |
mm |
ø2000*730 |
ø2500*860 |
ø2500*1100 |
ø3700*980 |
ø4000*1120 |
ø4850*1280 |
ø5000*1280 |
|
2 |
carrying capacity of the trolley |
kg |
5000 |
10000 |
20000 |
30000 |
40000 |
50000 |
60000 |
|
3 |
blasting quantity |
kg/min |
250*2 |
250*3 |
250*4 |
250*5 |
250*6 |
250*6 |
250*7 |
|
4 |
Shot blasting air pressure |
MPa |
0.5-0.6 |
0.5-0.6 |
0.5-0.6 |
0.5-0.6 |
0.5-0.6 |
0.5-0.6 |
0.5-0.6 |
|
5 |
Compressed air consumption |
M3/min |
6.5 |
6.5 |
6.5 |
6.5 |
6.5 |
6.5 |
6.5 |
|
6 |
elevating capacity |
t/h |
30 |
45 |
60 |
75 |
90 |
90 |
105 |
|
7 |
separating capacity |
t/h |
30 |
45 |
60 |
75 |
90 |
90 |
105 |
|
8 |
dedusting volume |
m3/h |
16000 |
20000 |
25000 |
30000 |
35000 |
35000 |
40000 |
|
9 |
total power |
kw |
54 |
72 |
91 |
115 |
148 |
162 |
188 |
|
10 |
outsize dimention |
mm |
9000*5200*9290 14900*55000*8100 16900*6540*100028 9168*7680*10874 15000*8200*11000 15800*8600*11960 16800*8670*11800 |
||||||
Specific Features
Q36 series trolley type shot blasting machine
This series of shot blasting machine is used for shot blasting cleaning of large and medium-sized steel structural parts and the outer wall of castings after the workpiece is transported into the chamber by the trolley, so as to remove sand, rust, oxide skin, dirt, etc. on the surface of the workpiece, make the surface of the workpiece metallic luster, eliminate the internal stress of the workpiece, improve the fatigue strength of the workpiece, and increase the paint film adhesion during painting of the workpiece, and to achieve the purpose of improving the surface and internal quality of the workpiece.
Q76 series trolley type shot blasting machine
this series of trolley-type cleaning machine, the trolley can not only carry the workpiece but also rotate, the workpiece can be cleaned comprehensively and limited, only one cleaning room is needed, for the workpiece with complex structure, the workpiece can be cleaned thoroughly by shot blasting, and the projectile circulation system is also compact. The whole machine occupies a small area and has low energy consumption compared with other cleaning equipment. It is used for surface cleaning and strengthening of steel structures and castings. It is more suitable for surface rust removal of thick billets and cleaning of surface oxide skin. It is widely used in casting, forging and mechanical steel industries.
