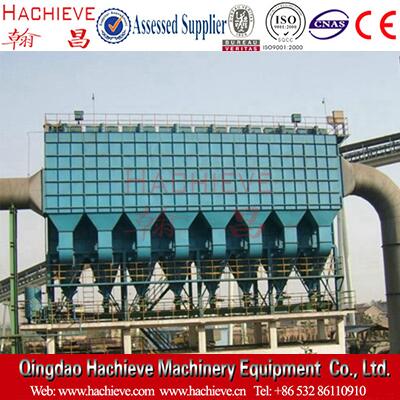

glass fiber bag filter

Usage Introduction

glass fiber bag filterconsists of the dust-containing gas inlet to the purified flue gas outlet, and the body structure is composed of an intake pipe, an intake chamber, a bag chamber, an ash hopper, an ash discharge valve, an outlet pipe, a blowback system and a dust cleaning control system.

The glass fiber bag house dust collector adopts microcomputer control, and the chamber is divided into blowing, timing, fixed resistance dust removal, temperature detection and display, etc., so that the glass fiber bag house dust collector can operate efficiently and stably in dust removal, and the emission concentration at the chimney outlet is lower than the national regulation of 50 mg/m & sup3; Emission standard (30 mg/m & sup3 can actually be guaranteed;). The equipment can not be shut down sub-chamber bag, simple operation, safe and reliable, low operating costs, is the current domestic flue gas dust removal is the ideal equipment. It can be widely used in vertical kiln, dryer, mill, packaging machine, hollow kiln and other dust points.

Specific Features

glass fiber bag filter is all steel structure, and is designed with anti-thermal expansion mechanism measures. The outer shell adopts LBY type light rock wool board double-layer insulation, the outer surface is protected with# = 0.5 galvanized plate, and the new technology of drawing rivets is adopted for installation. The flower plate is cold stamping, rolling and rolling forming process, which not only increases the strength but also ensures the quality of the equipment. The dust collector uses a high temperature resistant glass fiber bag treated by RH formula, which has excellent bending resistance, wear resistance, strength and thermal shock performance.

Dust-containing smoke enters the intake pipe through the flue, enters the intake chamber from the upper station, some coarse particles fall into the ash hopper by inertia, and the rest of the smoke dust enters the filter bag, enters the bag chamber after being filtered by the inner surface, and then is discharged into the atmosphere by the exhaust fan through the ventilation slot, exhaust valve and outlet pipe. The equipment is the upper air intake, and the negative pressure vibrates as the air filter type glass fiber bag dust collector. After a period of time, the dust trapped on the inner surface of the filter bag thickens, and the running resistance of the filter increases. When a certain value is increased, the filter bag needs to be cleaned, that is, the dust attached on the inner surface of the filter bag is removed by external force, so that the running resistance of the filter decreases. After the resistance decreases by a certain value, the chamber filter bag is put into normal operation again.
