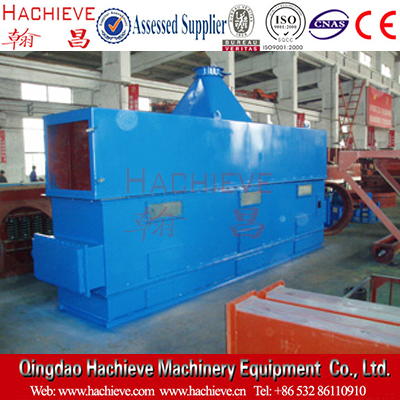

sand temperature regulator
Usage Introduction
sand temperature regulator adjusts the temperature of the old sand to meet the process requirements for the convenience of modeling or regeneration.
technical parameters
|
Model |
Productivity (T/H) |
Sand production temperature |
Air pressure (Pa) |
Exhause air rate(m3/h) |
Cooling water consumption(m3/h) |
comments |
|
FT10 |
10 |
≤32 |
>0.1X105 |
>6000 |
50 |
A water cooling unit is recommended when the water temperature is higher than 20 degrees |
|
FT15 |
15 |
≤32 |
>0.1X105 |
>7000 |
80 |
|
|
FT20 |
20 |
≤32 |
>0.1X105 |
>9000 |
100 |
|
|
FT25 |
25 |
≤32 |
>0.1X105 |
>11000 |
110 |
|
|
FT30 |
30 |
≤32 |
>0.1X105 |
>13000 |
150 |
|
|
Note: Sand production temperature can be adjusted as required by the basic process |
||||||
Specific Features
air flow is rushed to the hot sand through the boiling plate, so that the sand exchanges heat with the heat exchanger above the boiling plate in the boiling state. The sand stream advances efficiently while sucking up fine dust from the sand stream.
